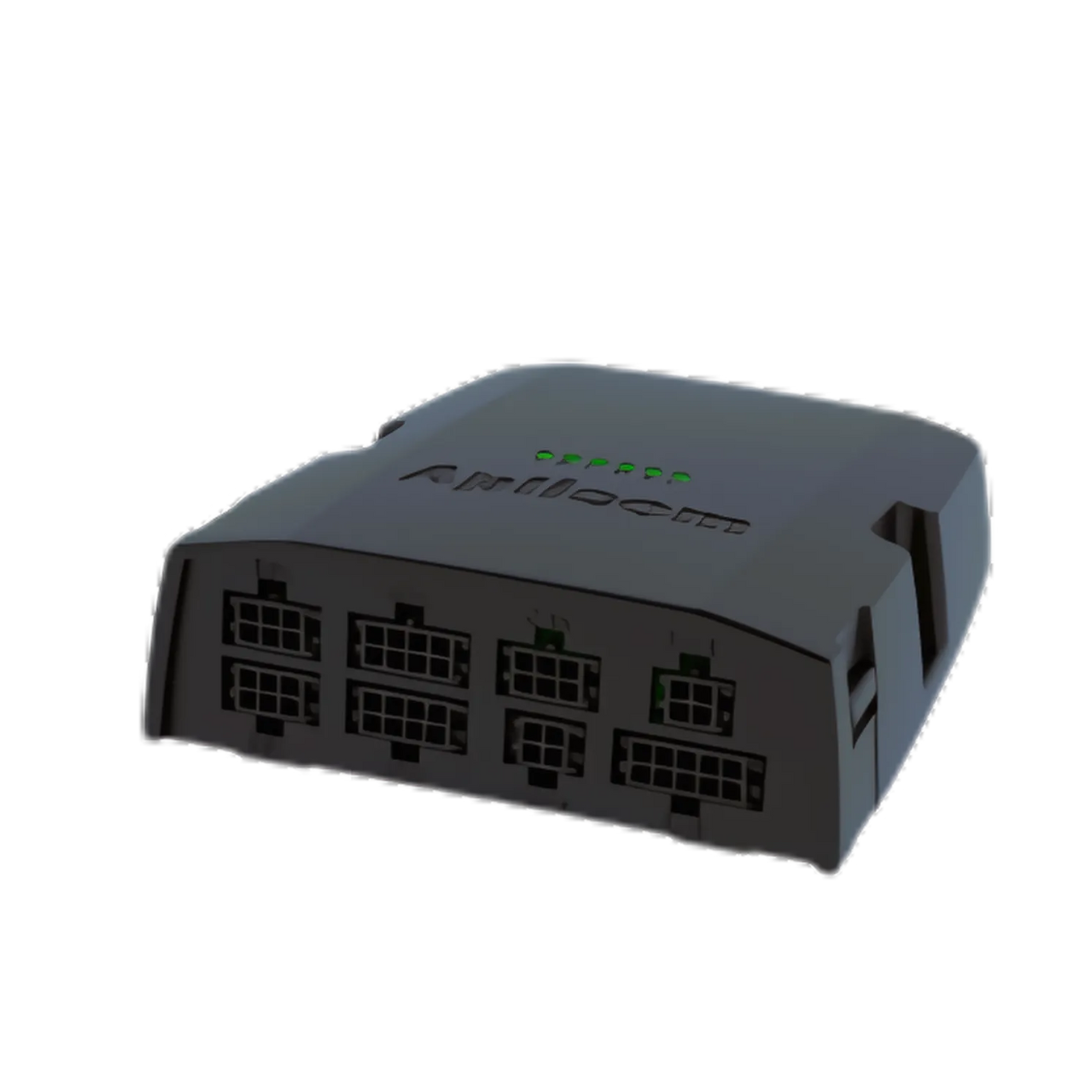

Aplicom LTE-BLE A11 Series

Description

• Product Specifications:

  • Connectivity: Available in 3G and 4G LTE versions, with optional Bluetooth Low Energy (BLE) 5.0 and WLAN modules.​

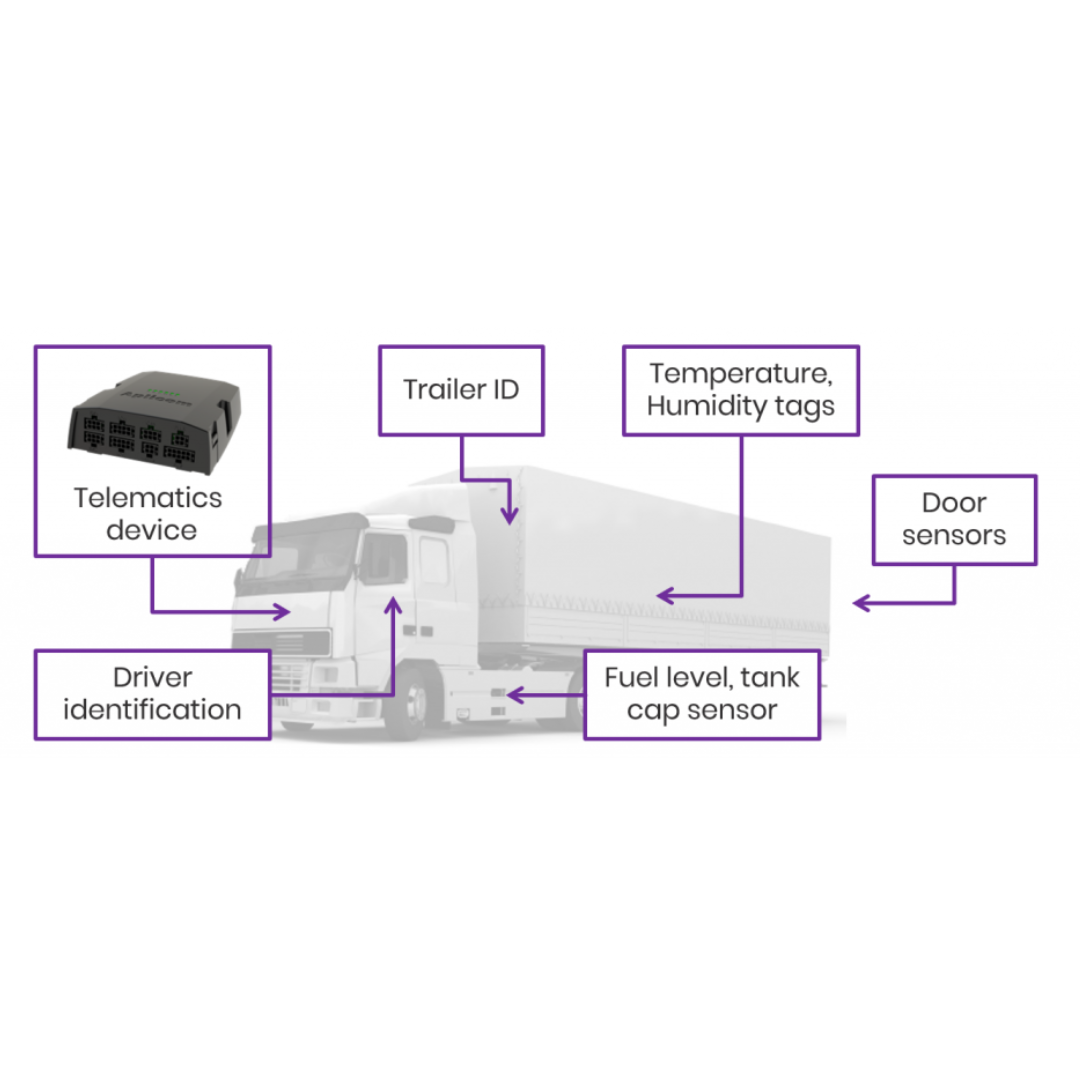

  • Interfaces:

    • CAN, FMS CAN, CAN ID, EBS, and digital tachograph connectivity.

    • Versatile digital and analog inputs/outputs for connecting external devices and sensors.

  • Positioning: Equipped with a uBlox EVA GNSS receiver supporting GPS/QZSS L1 C/A, GLONASS L10F, and GALILEO.​

  • Additional Features:

    • Over-The-Air (OTA) updates for software and configurations.

    • Internal accelerometer for movement detection and wake-up functionality.

    • Optional WLAN module with three operating modes.

    • Measurement of supply voltage for engine operation detection and battery condition monitoring.

• Features:

  • Global Connectivity: Supports global mobile networks, ensuring data availability even in remote locations.​

  • Bluetooth Integration: Optional BLE 5.0 module allows pairing with beacons and sensors for enhanced data collection and device identification.​

  • Customizable Configuration: Pre-defined configurations can be installed during assembly, with OTA updates enabling on-the-fly adjustments to meet specific needs.​

  • Remote Management: Aplicom Over-the-Air management tools enable remote management of device software and configurations.​
