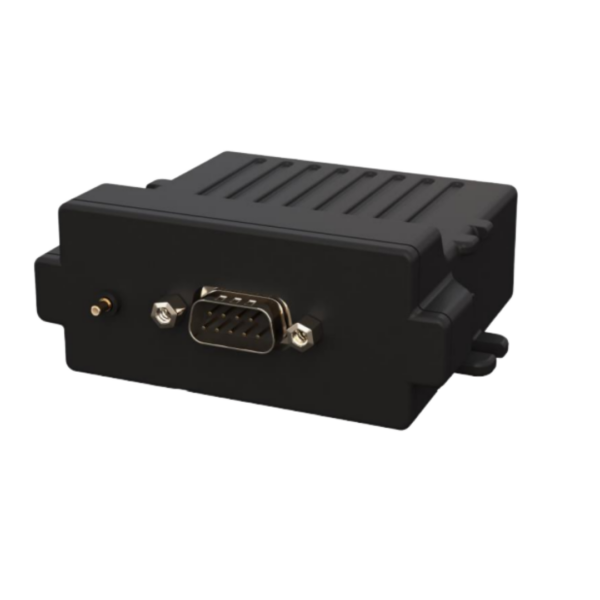

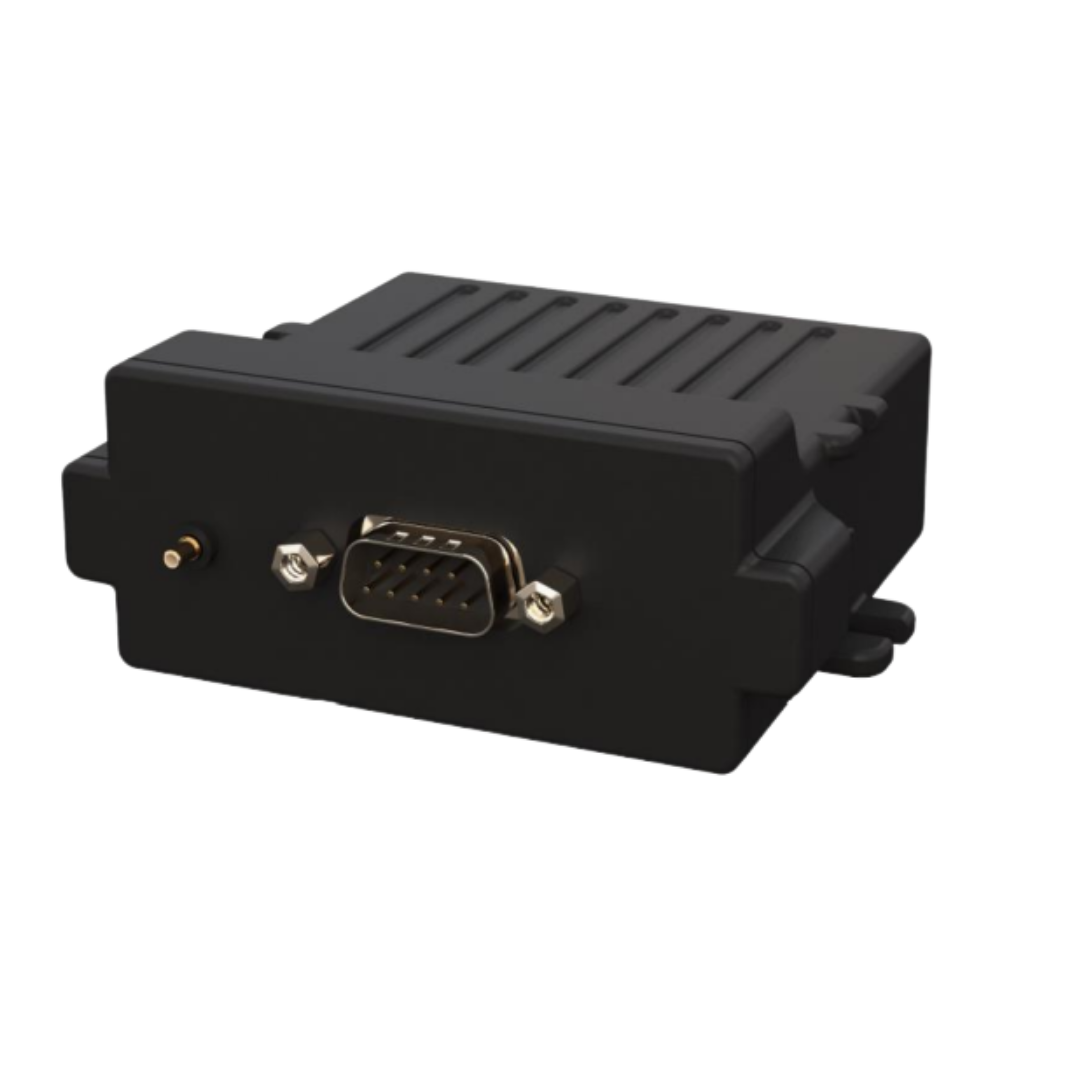

ASTRA AT211

Description

• Product Specifications:

  • Mobile Network Communications: GSM/GPRS (2G), LTE Cat-M1 (4G), and NB-IoT.

  • Operating Voltage: 5V to 65V DC.

  • Antennas: Internal GNSS and GSM antennas; option for external GNSS antenna via SSMB connector.

  • SIM Card Format: Micro SIM (3FF), push-push style.

  • Accelerometer: Integrated 3-axis accelerometer for motion detection and driver behavior analysis.

  • Battery Capacity: Internal 510mAh lithium-polymer backup battery.

  • Inputs/Outputs:

    • 2 digital inputs.

    • 2 digital outputs (60V, 0.5A maximum, MOSFET open drain).

    • 1-Wire interface for driver identification or temperature sensing.

    • RS232 serial port.

  • Ingress Protection: IP67-rated, ensuring water and dust resistance.

  • Dimensions: Compact design for easy installation.

• Features:

  • Real-time Tracking: Provides accurate, real-time location updates for vehicles.

  • Geofencing: Allows setting up virtual boundaries with alerts when the vehicle crosses them.

  • Driver Identification: Supports iButton for driver ID applications.

  • Low Power Consumption: Operates efficiently with minimal power usage, featuring a sleep mode to reduce battery drain when the vehicle is stationary.

  • Over-the-Air (OTA) Updates: Supports firmware updates remotely, ensuring the device remains up-to-date with the latest features and improvements.

  • Durable Design: Compact form factor with a robust, waterproof enclosure, suitable for various installation environments.
