Description
AT500 makes tracking of the smallest, unpowered assets easier than ever! With up to 12 months battery life and Qi wireless charging, its clear to see why this tiny magnetic mount device is so popular. The AT500 comes with BLE as standard for easy configuration and diagnostics via smartphone. Future-proof communications include 4G LTE-M and NB-IoT communications, in addition to 2G GPRS fallback.

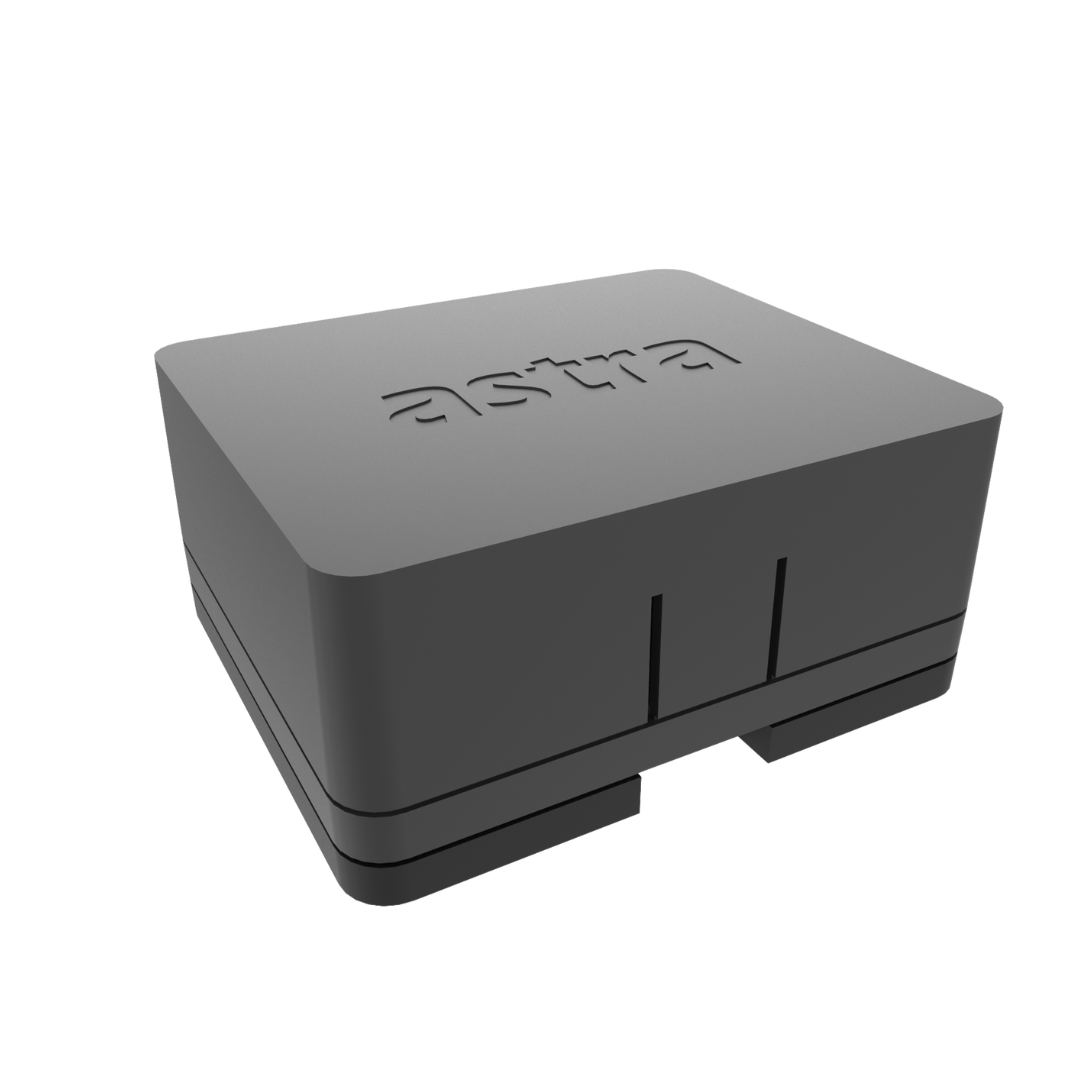

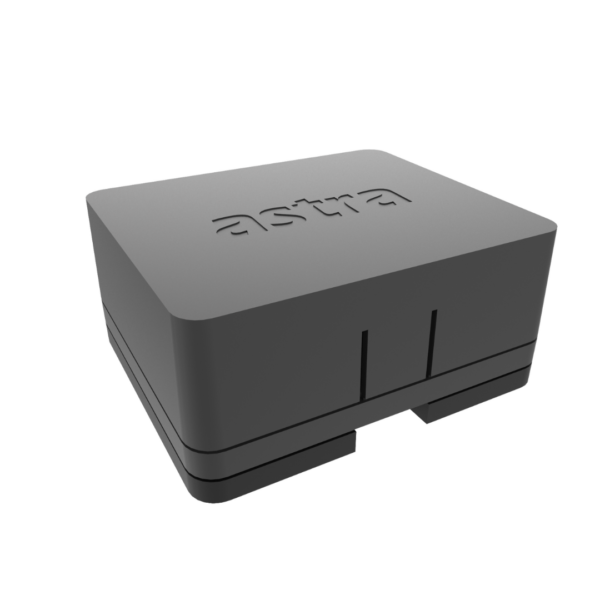

AT500
Techincal Specifications
| Accelerometer | Yes |
|---|---|
| BLE (Bluetooth) | Yes |
| GNSS Antenna Size | 15mm |
| Mobile Network Communications | GSM (2G) + LTEM (4G) + NB-IoT |
| GSM Antenna | Internal |
| GNSS Antenna Type | Internal |
| SIM Card Format | e-SIM |
| Qi Wireless Charging | Yes |
| Battery Life (LP mode, 24hr reporting) | 6 months |
| Battery Capacity (internal) | 2200mAh |
| 1-Wire / Dallas | 0 |
| ADC Inputs | 0 |
| AUX 3.3V Out | No |
| CANBus | No |
| Digital Inputs | 0 |
| Driver ID | No |
| Digital Outputs | 0 |
| Ingress Protection | IP68 |
| LED Indicators | None |
| RS232 Ports | 0 |
| Tamper Sensor | No |
