ASTRA AT111

Compare

Description

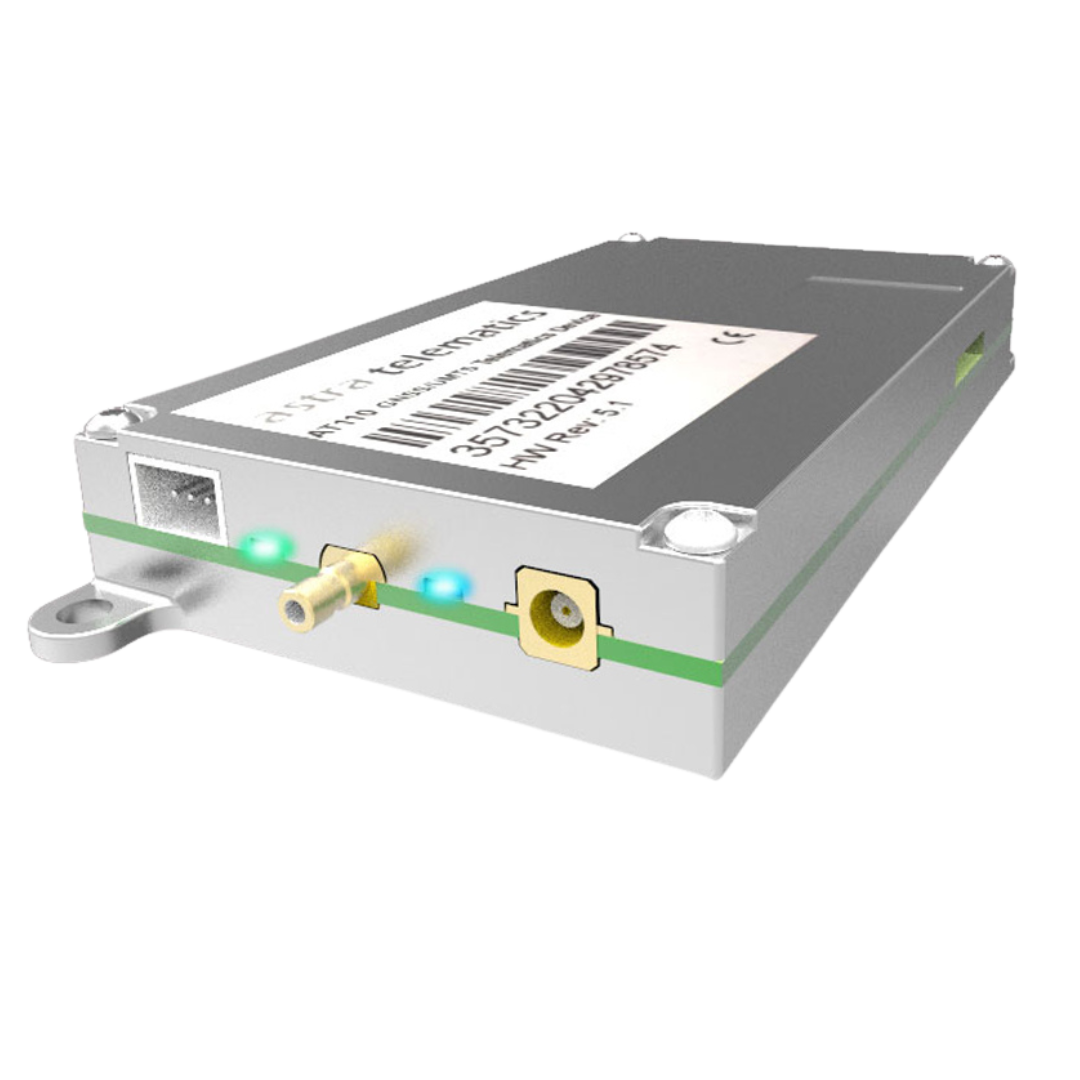

AT111 is ideal for applications where external antennas must be used, either roof-mount, glass-mount, mag-mount or self-adhesive antenna options are available, to suit all possible installation types and vehicles.

The AT111 is based on our “fully-loaded” AT241 device, but with the option to use a variety of external antennas, it suits applications where the device itself cannot be mounted in an optimum location for mobile network coverage and GNSS visibility.   The AT111 benefits from exactly the same I/O and 2G/4G communications as our AT241.  The AT111 is based on our unique aluminium-alloy ‘sandwich’ construction, allowing incredibly tiny dimensions, simple SIM access, external LED status indicators and a very ‘solid’ look and feel that sets it apart from anything else in the telematics business!
GPRS (2G) + LTE-M (4G) + NB-IoT

GPS GALILEO GLONASS & Beidou

Micro SIM

External Antennas

CANBus

50V Operation

MEMS Accelerometer

Back-up Battery

LED Status Indicators

1-Wire / Dallas

5 Digital Outputs

6 Digital Inputs



AT111 Technical Specifications

Mobile Network Communications GSM/GPRS (2G) + LTE-M (4G)
Minimum Operating Voltage 6.0V
Maximum Operating Voltage 50.0V
Qi Wireless Charging No
GSM Antenna External
GNSS Antenna Type External
GNSS Antenna Size 25mm
BLE (Bluetooth) No
SIM Card Format Micro
Tamper Sensor No
Accelerometer Yes
Battery Capacity (internal) 950mAh
Battery Life (LP mode, 24hr reporting) 7 days
Ingress Protection None
LED Indicators External
Digital Inputs 6
Digital Outputs 5
ADC Inputs 2
RS232 Ports 2
CANBus Yes
1-Wire / Dallas 1
AUX 3.3V Out Yes
Driver ID Yes
