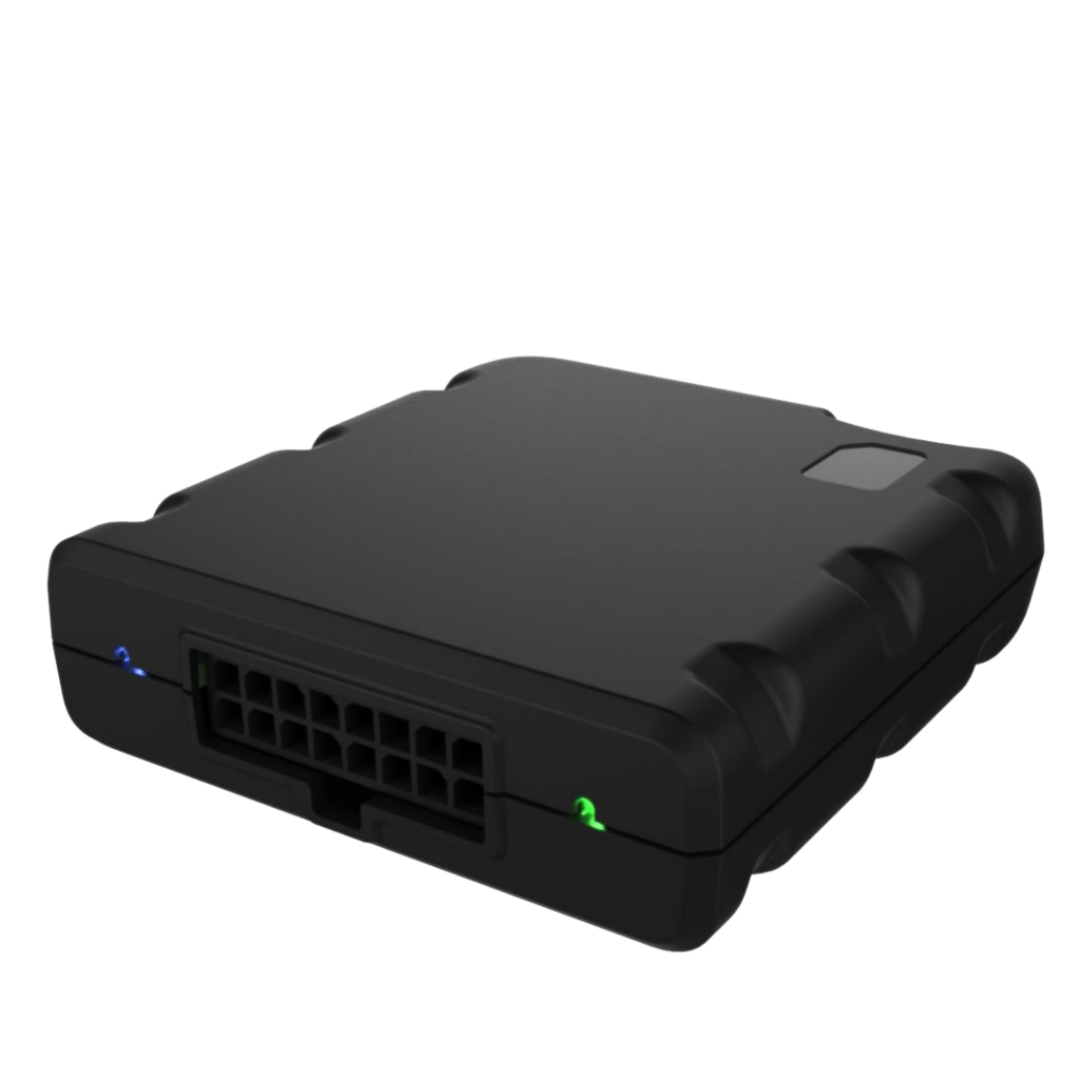

ASTRA AT200V3

Compare

Description

  • Product Specifications:

    • Processor: ARM Cortex-M3

    • GNSS Module: u-blox EVA-M8M supporting GPS, GLONASS, GALILEO, and BeiDou

    • Communication Module: Quectel M66 Quad Band GSM/GPRS with Bluetooth

    • Power Supply: Operates from a DC voltage between 6 and 36 volts

    • Backup Battery: Internal 900mAh lithium-polymer battery providing approximately 6 hours of continuous operation or 6 days in low-power mode with hourly reporting

    • Inputs/Outputs:

      • 2 digital inputs

      • 1 digital output

      • RS232 port

      • iButton input for driver identification

    • Additional Features:

      • 3-axis accelerometer for motion detection and driver behavior analysis

      • Internal GNSS and GSM antennas

      • Bluetooth-based driver ID/authentication/authorization

      • Low power consumption with sleep mode

      • Over-the-air (OTA) firmware updates

      • Non-volatile storage for up to 2000 reports

      • Compact dimensions: 60 x 58 x 18 mm

      • Operating temperature range: -20°C to +60°C

  • Features:

    • Real-time Tracking: Provides accurate, real-time location updates for vehicles

    • Geofencing: Allows setting up virtual boundaries with alerts when the vehicle crosses them

    • Driver Identification: Supports iButton for driver ID applications

    • Sleep Mode: Reduces power consumption when the vehicle is stationary

    • Compact Design: Small form factor with internal antennas for easy installation and inconspicuous appearance

    • Bluetooth Connectivity: Enables wireless communication for driver authentication and other applications









#uae  #locationTracker #abu_Dhabi
