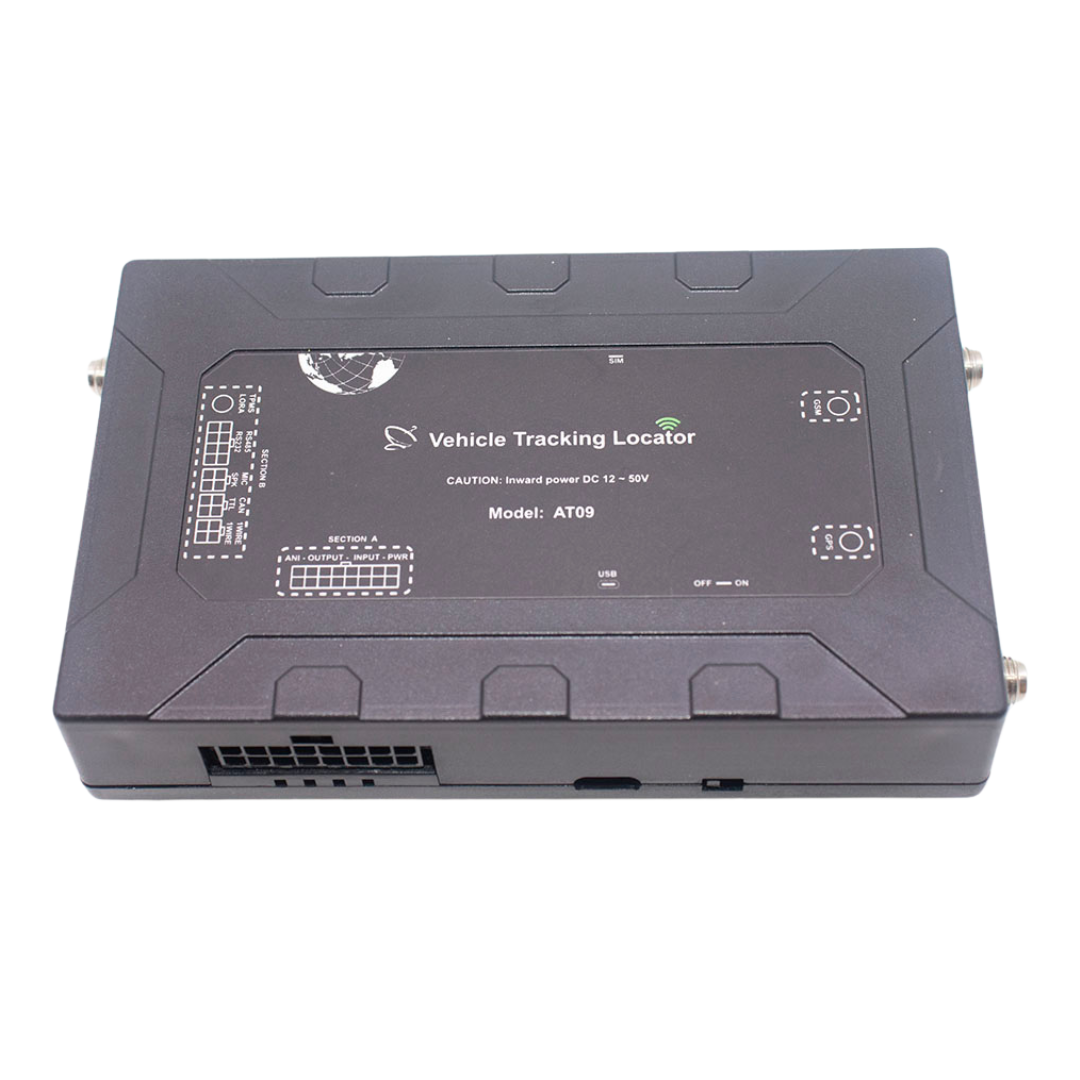

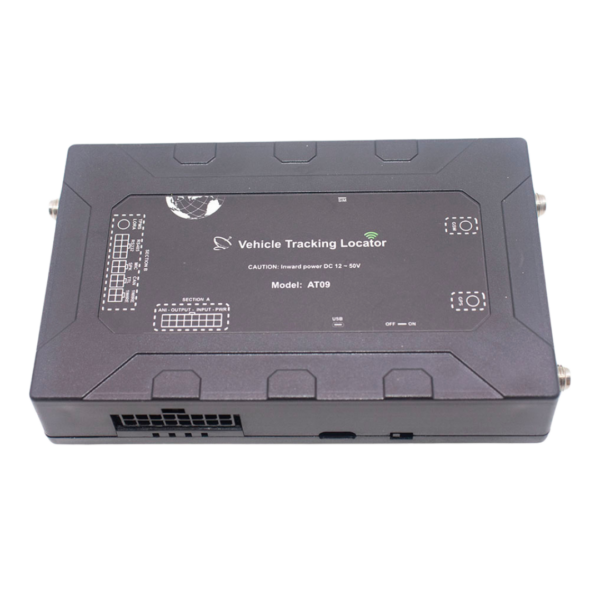

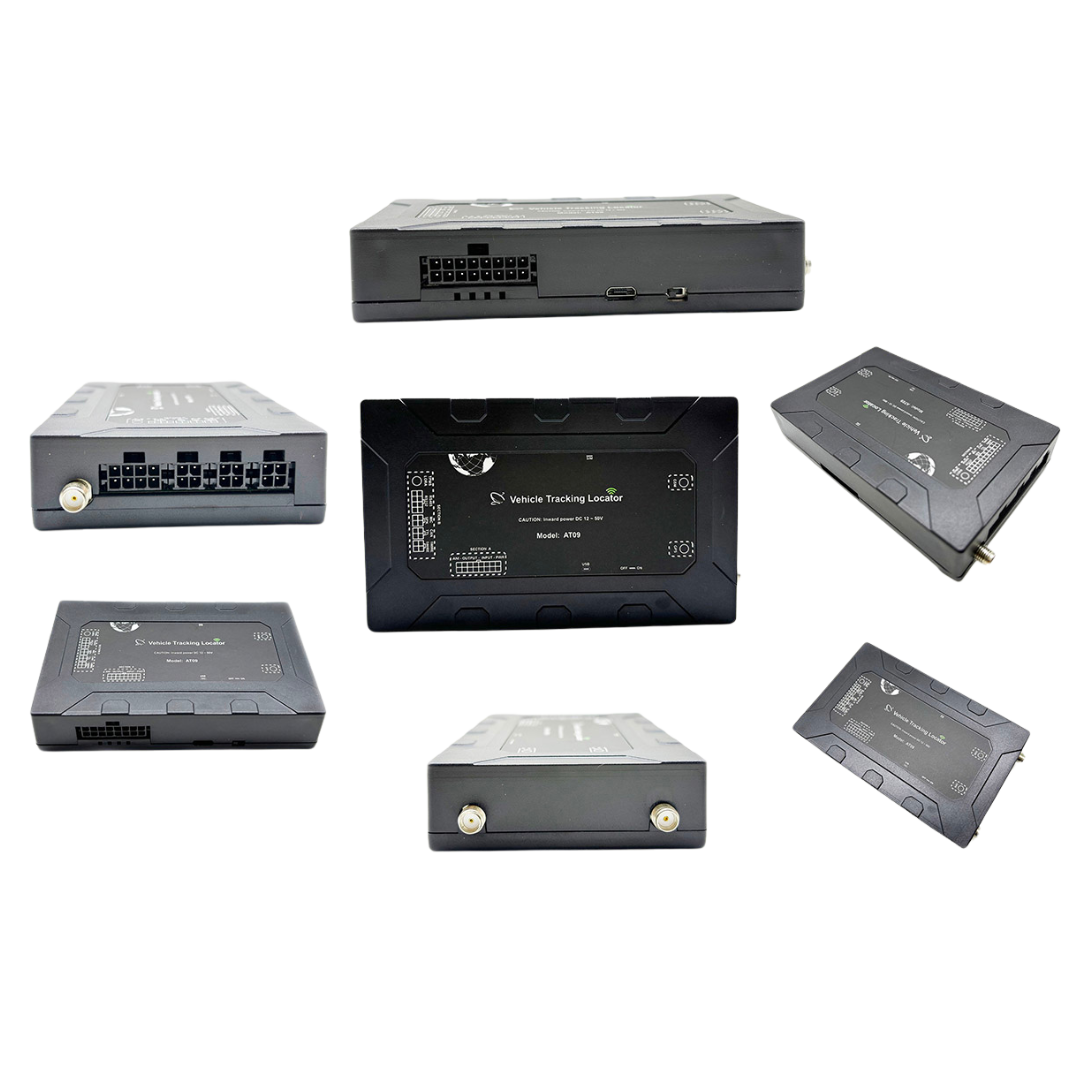

AT09

Description

               Product Specifications:

• • Network Compatibility: Supports 2G, 3G, and 4G networks.

  • GPS Module: Utilizes the u-blox NEO-6M chipset with a sensitivity of -162 dBm and a 50-channel receiver.

  • Power Supply: Operates on an external power source ranging from +12V to +50V DC at 1.5A.

  • Internal Battery: Equipped with an 800mAh rechargeable lithium-polymer battery, resistant to high temperatures up to 80°C.

  • Power Consumption: Normal consumption is 2W, peaking at 12.5W.

  • Dimensions: Measures 112×80×25mm.

  • Weight: 150g.

  • Memory: 16Mb Flash Memory, capable of storing approximately 4,000 data points.

  • Operating Temperature: Functions between -20°C to 60°C.

  • Humidity Tolerance: 5% to 95% non-condensing.

  • Inputs/Outputs:

    • 4 digital inputs.

    • 4 digital outputs.

    • 4 analog inputs.

    • 2 RS232 ports.

    • 1 RS485 port.

    • 2 1-Wire interfaces for temperature sensors.

    • Ports for voice communication: microphone and speaker interfaces.

    • SOS button input.

    • USB port for debugging and configuration.

• Features:

  • Real-time GPS tracking.

  • Tire Pressure Monitoring System (TPMS) for up to 42 sensors.

  • Wi-Fi hotspot capability.

  • LoRa and Bluetooth support.

  • Integrated microphone and speaker for two-way voice communication.

  • Fuel level and temperature monitoring.

  • Support for multiple peripherals, including RFID readers and dash cameras.

  • Over-the-Air (OTA) firmware updates.

  • Dual-server data transmission.

  • Geofencing alerts.

  • Multiple alarms, including overspeeding, low battery, vibration, and SOS alerts.
